VERTICAL FILTERS

View details

FEATURES

• Commercial sand filters are Fiberglass wound tank, UV and corrosion Resistant.
• Manual Air Release Valve enables easy release of trapped air during operation of the filter.
• Sight glass and Manhole are available in option.

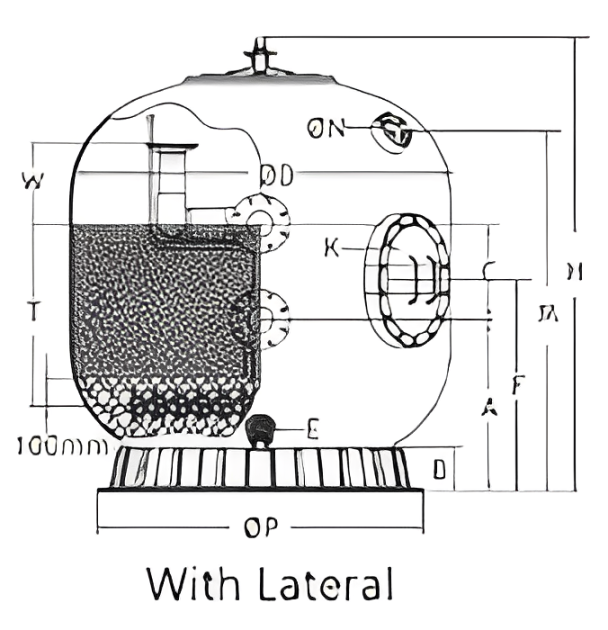

• Lateral configuration for maximum hydraulic performance.
• Nozzle plate system ensures uniform flow for both filtering and backwashing, ensuring maximum performance through the media bed. Save up to 25% of back­wash water.
• Lateral and nozzle plate are available in option.

Categories:

Product Description

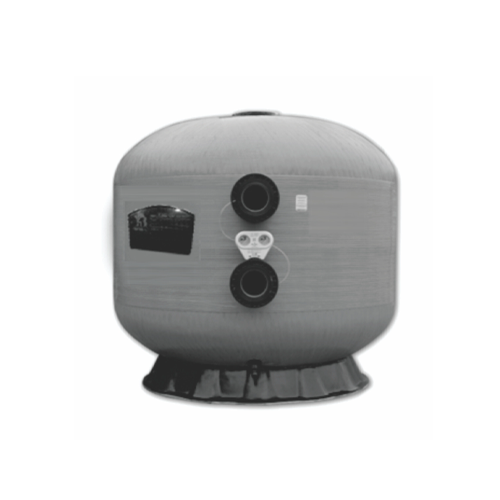

FIBRE GLASS SAND FILTERS FOR COMMERCIAL POOLS

CFSF SERIES

FEATURES

• Commercial sand filters are Fiberglass wound tank, UV and corrosion Resistant.
• Manual Air Release Valve enables easy release of trapped air during operation of the filter.
• Sight glass and Manhole are available in option.
• Lateral configuration for maximum hydraulic performance.
• Nozzle plate system ensures uniform flow for both filtering and backwashing, ensuring maximum performance through the media bed. Save up to 25% of back­wash water.
• Lateral and nozzle plate are available in option.

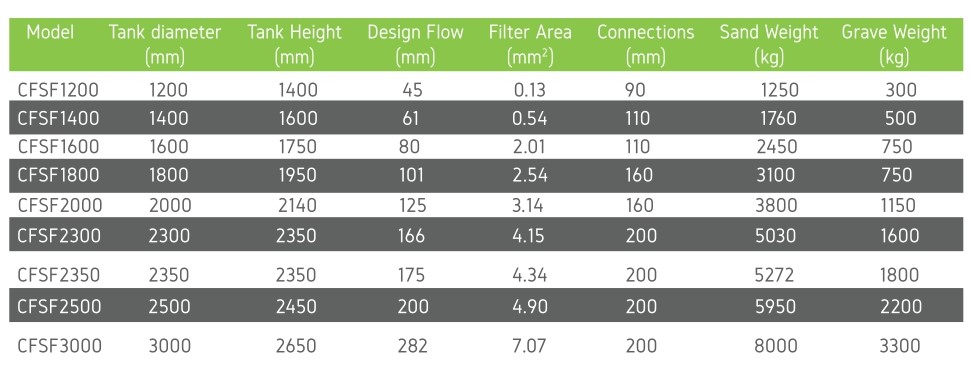

SPECIFICATION

• Maximum working pressure: 250kPa/36psi/2.Sbar or
400kPa/58psi/4.0bar.
• Factory Testing Pressure: 400kPa/58psi/4.0bar or
600kPa/86psi/6.0bar.
• Maximum Water Temperature: S0° C
• Size of Gravel: lmm-2mm
• Size of Silica Sand: 0.5~0.Bmm

Application

  • Swimming Pool and Spa
  • Agriculture
  • Industrial Water Treatment



  • Model : CFSF Series
  • Type : Pressure Sand Filter
  • Usage : Water Treatment Filtration
  • Velocity: 50m3/hr/m2
  • Diameter : 1200mm-3000mm
  • Trademark : Verseau

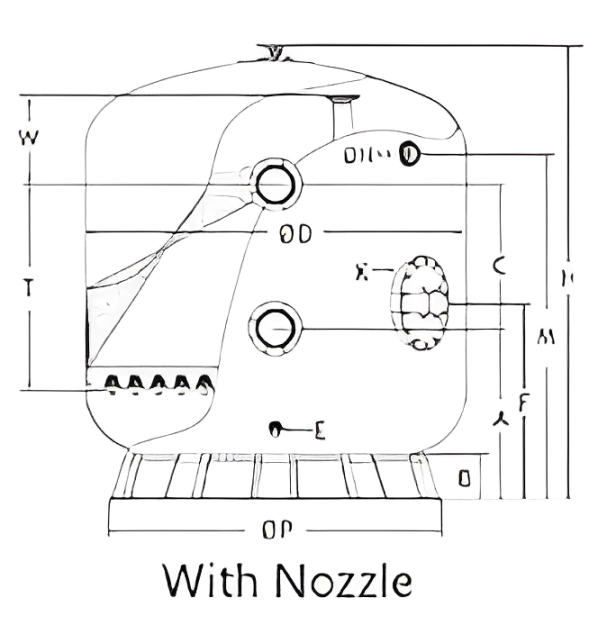

 With Nozzle
